Valentine1 Radar Detector Nov 17, 2018

The first step in any car I have purchased is to install and hardwire my Valentine1 radar detector.
Start slideshow

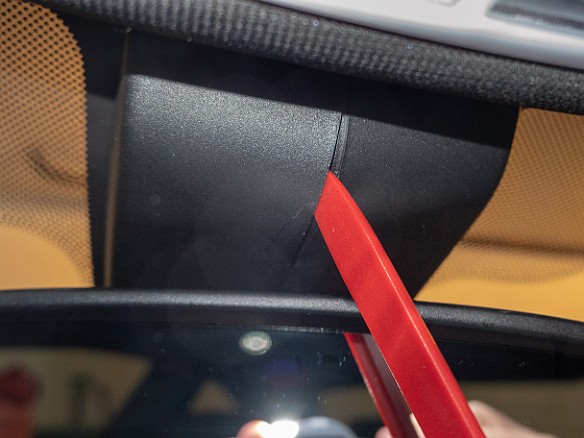

Valentine1-004 We're going to tap power from the mirror. So the first step is to pry apart the clam shell mirror electronics housing with a non-marking nylon trim tool.
1 We're going to tap power from the mirror. So the first step is to pry apart the clam shell mirror electronics housing with a non-marking nylon trim tool.

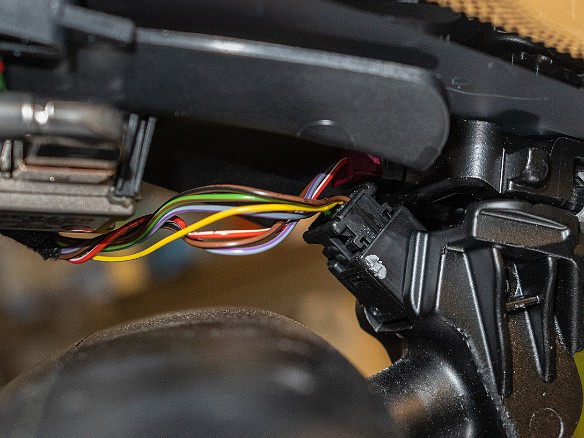

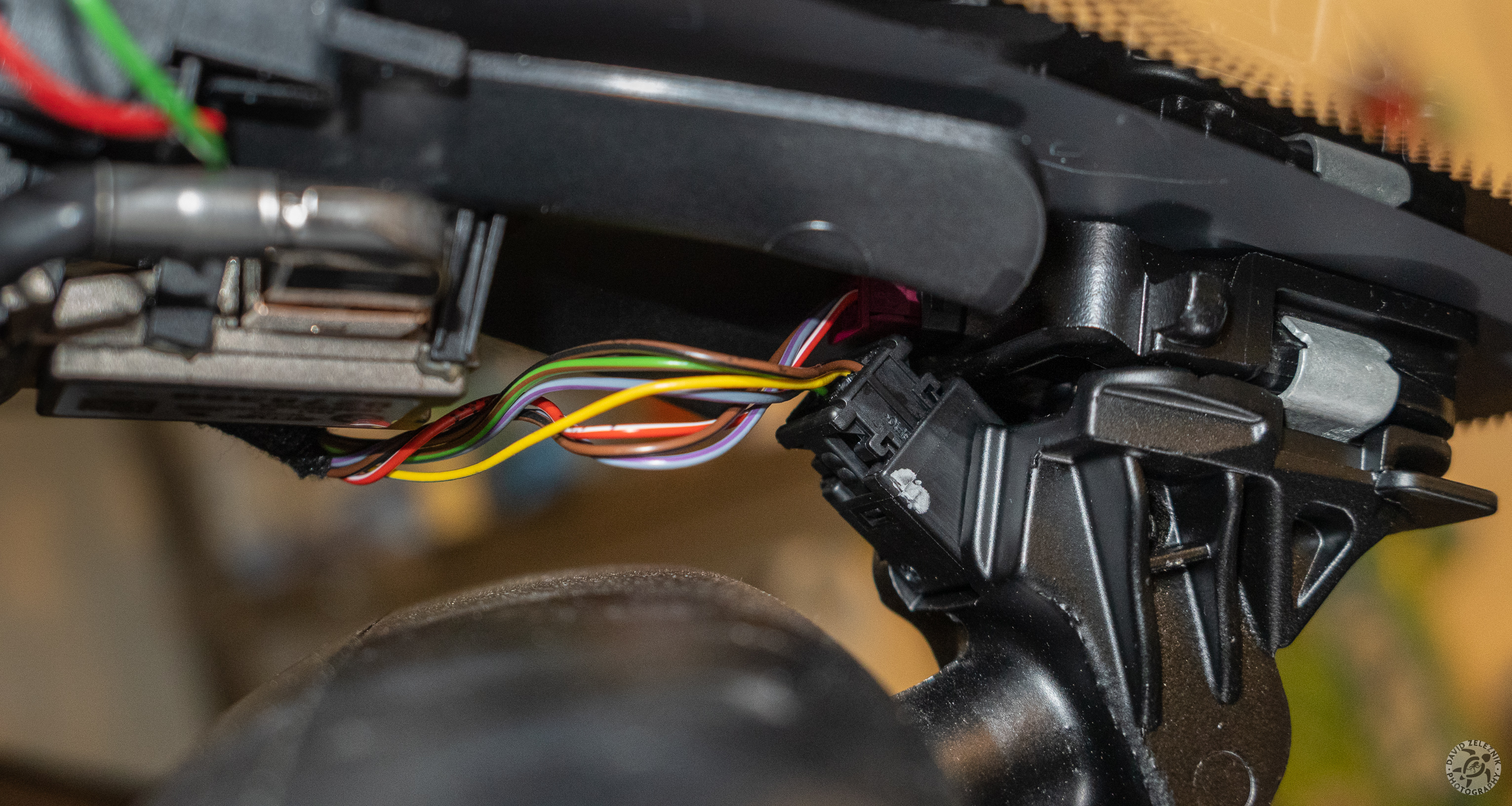

Valentine1-005 With the housing removed, switched power is going to be tapped from the large molex connector.
2 With the housing removed, switched power is going to be tapped from the large molex connector.

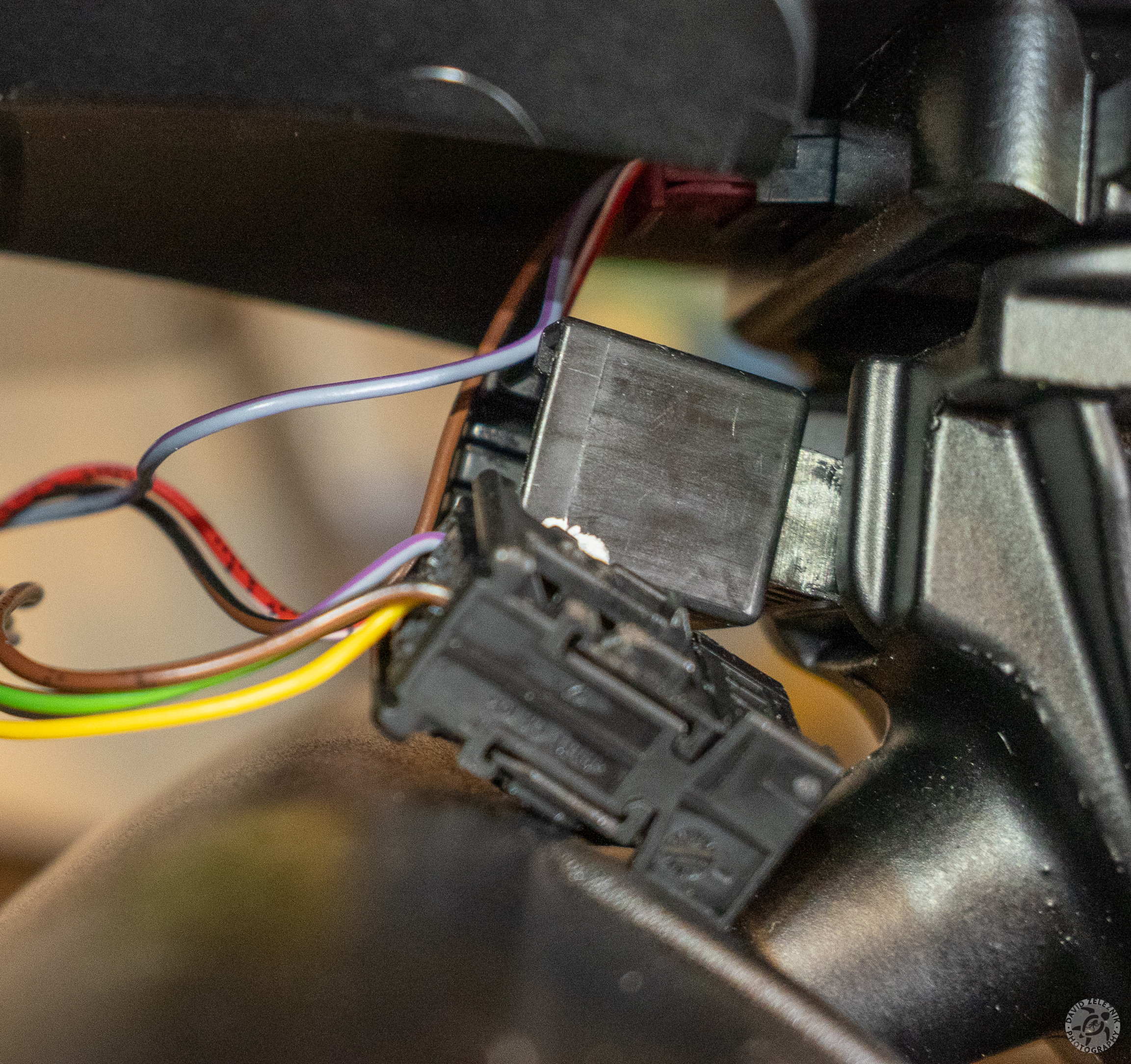

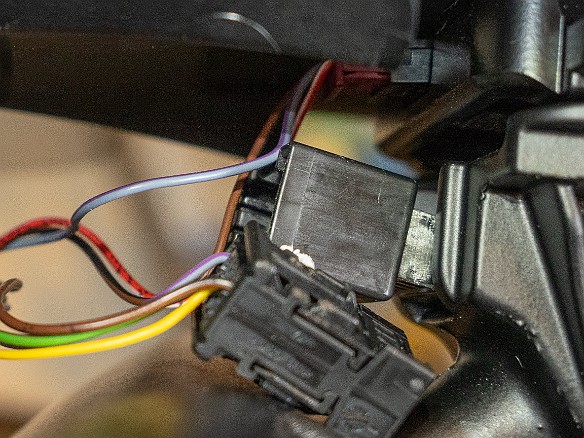

Valentine1-006 Squeeze the top and bottom of the molex connector to disengage its latches and then wiggle it free from the socket. The female socket will pull out a short...
3 Squeeze the top and bottom of the molex connector to disengage its latches and then wiggle it free from the socket. The female socket will pull out a short distance from its holder, which makes it easier to access the connector.

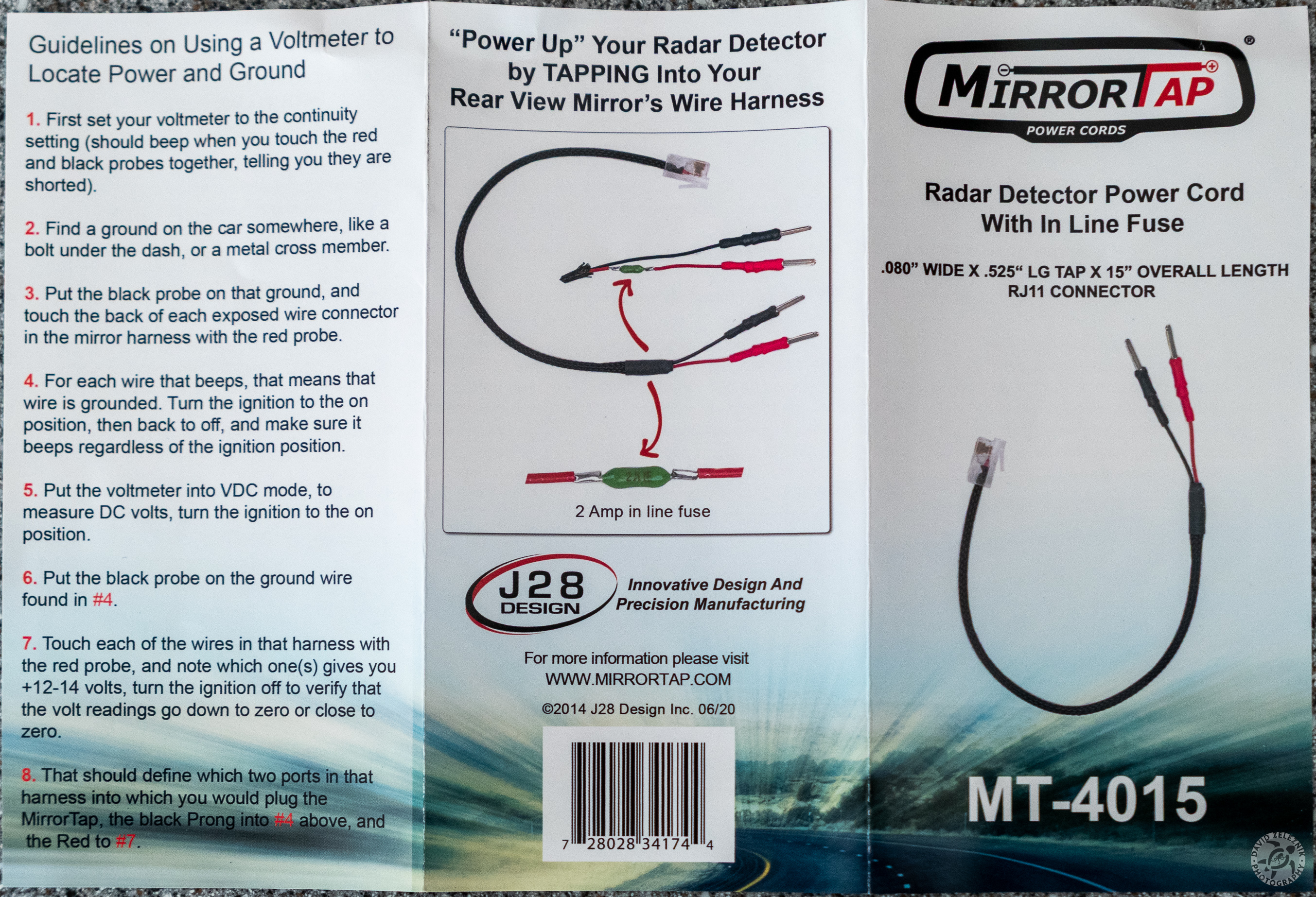

Valentine1-008 In previous vehicles, I used Valentine's hard-wire module which is a bit bulky to fit into tight spaces. This time, I tried MirrorTap which is very slim and...
4 In previous vehicles, I used Valentine's hard-wire module which is a bit bulky to fit into tight spaces. This time, I tried MirrorTap which is very slim and taps directly into the mirror's molex connector. Also, the cable is the perfect length and gives the install a much more professional appearance.

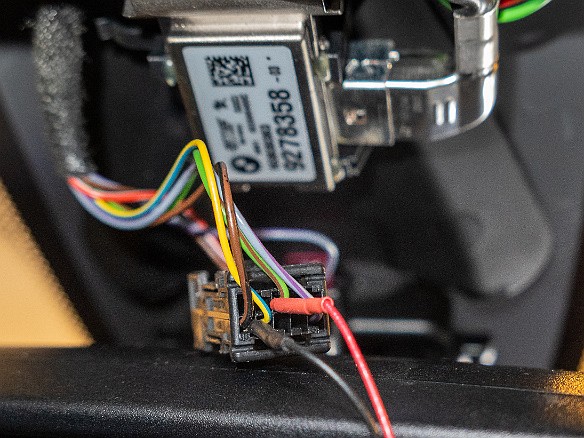

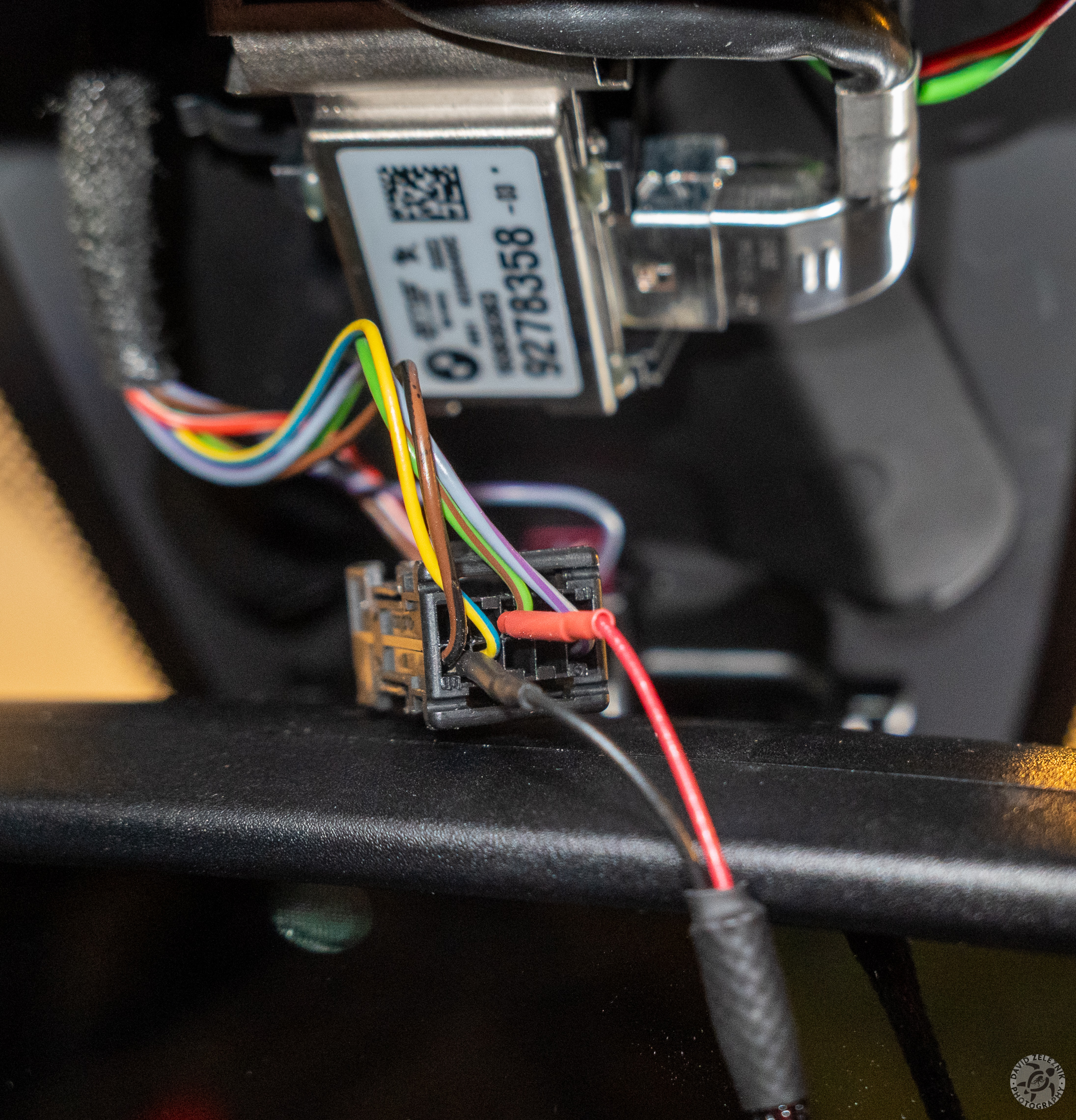

Valentine1-009 Switched power is green with brown stripe and ground is brown with black stripe. The thin flat blades of the MirrorTap are inserted into the back of the molex...
5 Switched power is green with brown stripe and ground is brown with black stripe. The thin flat blades of the MirrorTap are inserted into the back of the molex connector.

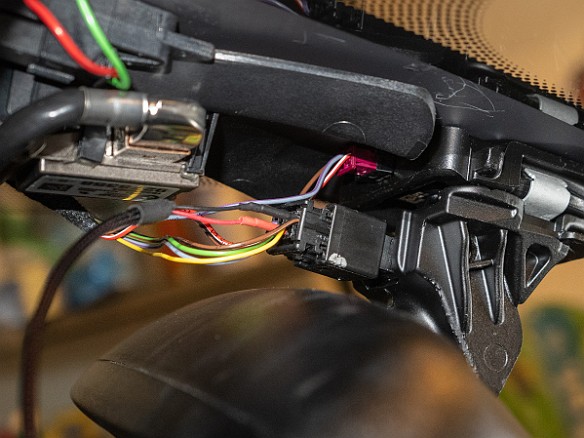

Valentine1-012 Reconnect the molex connector and time to test out that the radar detector powers up and down with the ignition before final reassembly.
6 Reconnect the molex connector and time to test out that the radar detector powers up and down with the ignition before final reassembly.
Valentine1-013 It's not strictly necessary, but I tie-wrapped the MirrorTap to the mirror cable bundle for strain relief.
7 It's not strictly necessary, but I tie-wrapped the MirrorTap to the mirror cable bundle for strain relief.

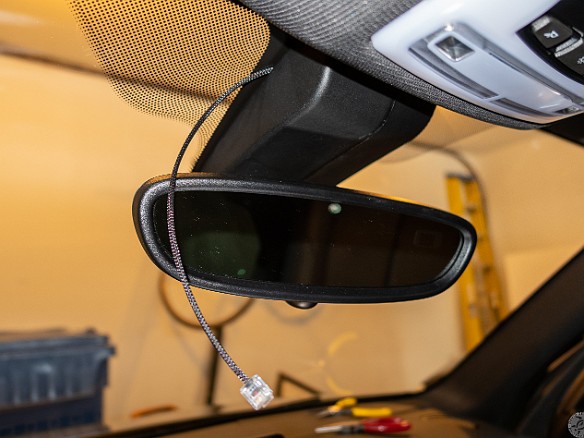

Valentine1-018 Snap together the mirror clam shell housing and we are almost done
8 Snap together the mirror clam shell housing and we are almost done

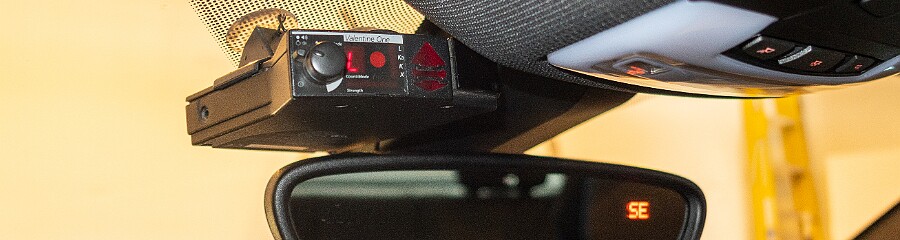

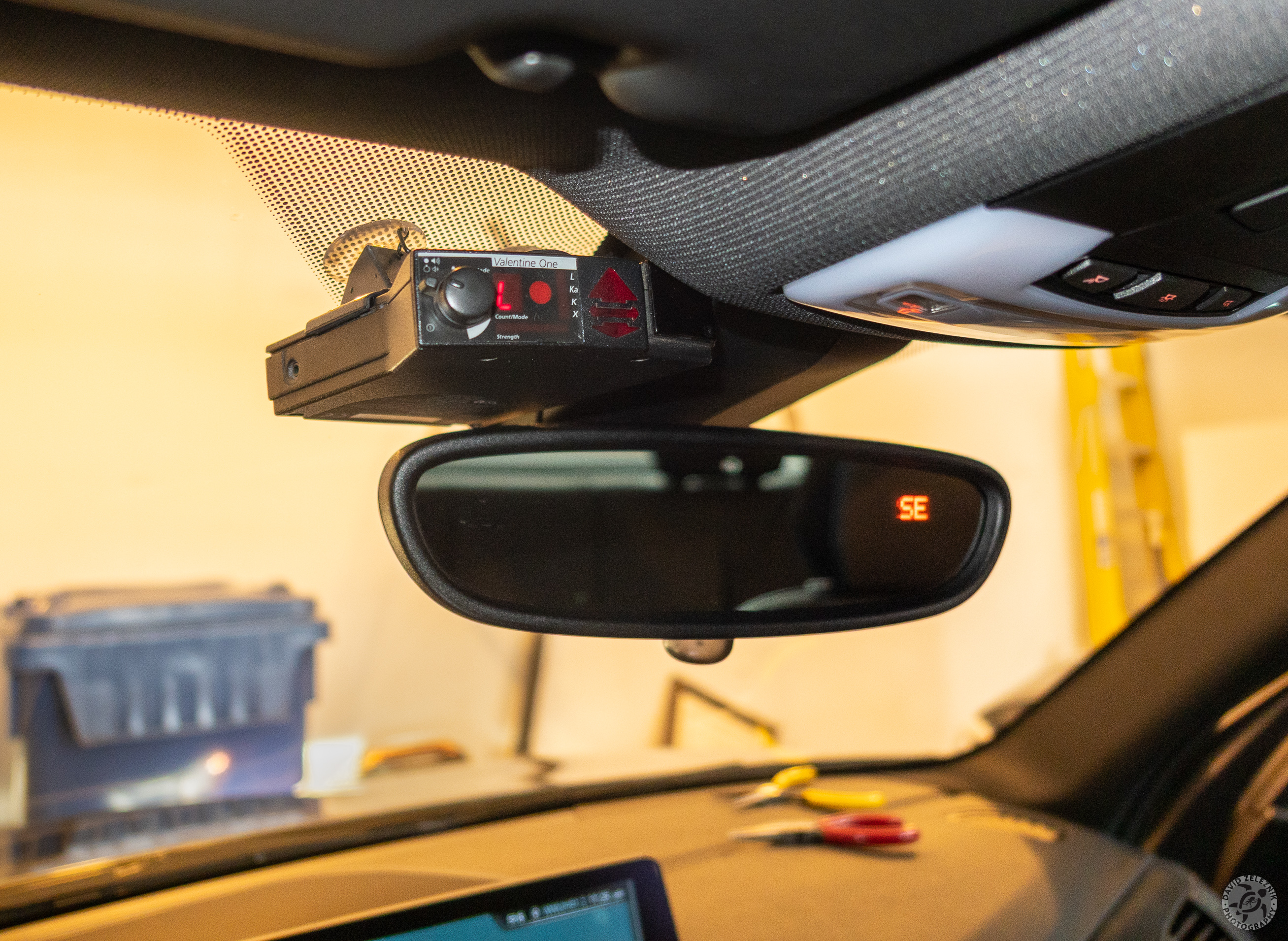

Valentine1-022 Mount and plug in the Valentine1, et voila!
9 Mount and plug in the Valentine1, et voila!
